When I was preparing (still am) for my TechEd talk about Reflection 2.0, one of the coolest things I found was this nice DynamicMethod visualizer posted as a code sample.
Taking apart the code for this project was a blast, and I learned many interesting things. I set out to create a new version of this Debugger Visualizer that also supports visualizing MethodInfo objects, not just Dynamic Methods (Code generated on the fly).
Here's the result:
- Download Just the binaries (38k) (simply unzip the dlls to My Documents\VS 2005\Visualizers)
- Download Binaries and source (358k)
Sample shots:

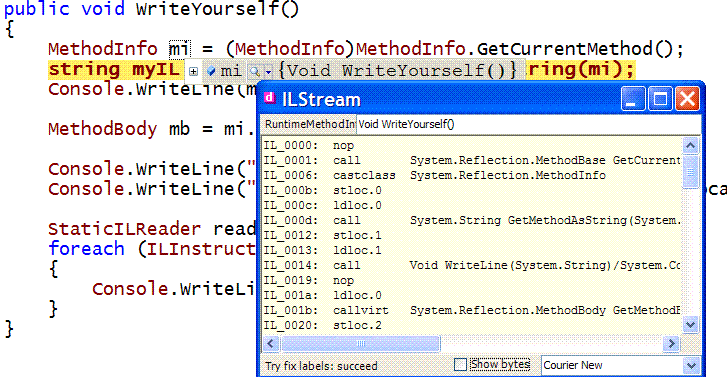

Visualizing a MethodInfo object:

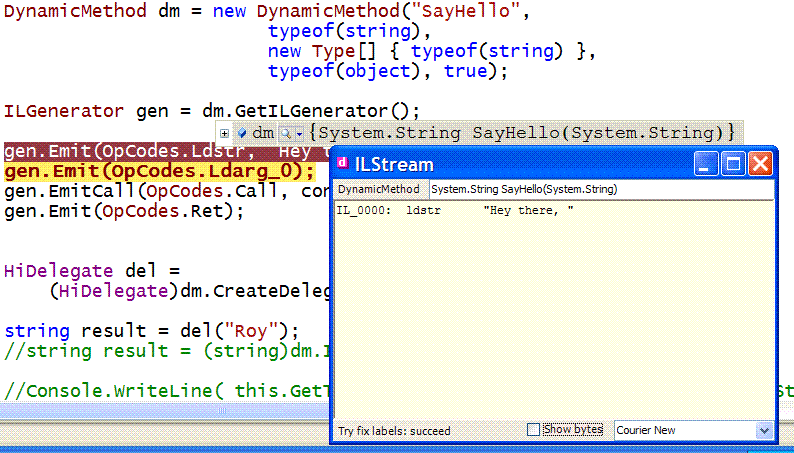

Visualizing a DynamicMethod object (the original ability for the code):
The source can help you learn how to:
- Get the IL byte stream from any MethodBase-based object
- Parse IL into understandable chunks
- Write a visualizer
- Resolve strings, methods and types from static Tokens in the IL code (see StaticResolver class)
- Understand IL Opcodes and what they stand for
Have fun, geeks!
